16/14 AH Slurry Pump

Size: 16" x 14"
Capacity: 1368-3060m3/h
Head: 11-63m
Speed: 250-550rpm
NPSHr: 4-10m
Eff.: 79%
Power: Max.1200kw
Handling solids: 135mm
Materials: High chrome alloy, Rubber, Polyurethane etc

                                                                 AH Slurry Pump Design

AH slurry pump struction metal walker

Main Part Number At The Drawing

032: Frame Plate
060: Intake Joint
132: Discharge Joint
083: Throatbush
110: Volute Liner
147: Impeller
122: Stuffing Box Seal
036: Frame Plate Liner
013: Cover Plate
018: Cover Plate Liner
124: Volute Cover Seal
041: Frame Plate Liner Inser

                                         >>>>  Metal Pump Parts For Sale

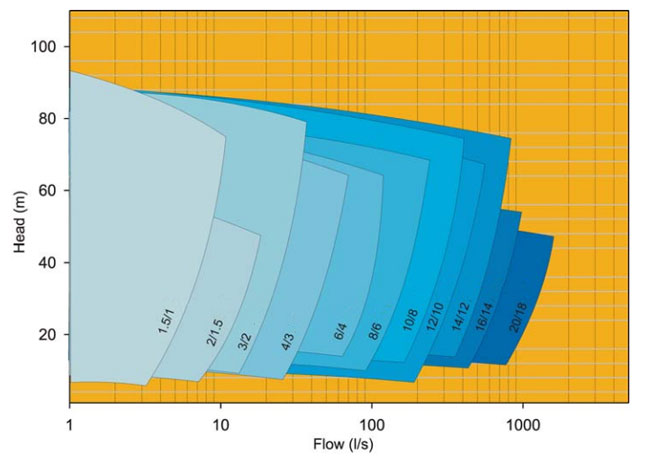

                                                        Selection Chart

16/14 AH Slurry Pump

Note: Approximate performance for clear water,to be used for primary selection only.

1. Heavy duty construction with through-bolt slurry pump design provides ease of maintenance and minimal downtime

2. Ductile iron fully lined casing provides durability, strength, safety, and long service life

3. Large diameter, slow turning, high efficiency slurry pump impellers designed to achieve maximum wear life and low operating costs

4. Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs

5. Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life

6. Minimal shaft/impeller overhang reduces shaft deflection and increases packing life

7. Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the slurry pump, resulting in reliable operation and prolonged bearing life

8. Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime

9. Optional dry running shaft seal reduces or eliminates flush water requirements

10. Effective expeller prolongs packing life while reducing or eliminating flush water requirement

Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized slurry pump1.

Model

Max. Power

(kw)

Materials

Clear Water Performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

1.5/1B-AH

15

M

M

12.6~28.8

6~68

1200~3800

40

2~4

5

RU

RU

10.8~25.2

7~52

1400~3400

35

3

2/1.5B-AH

15

M

M

32.4~72

6~58

1200~3200

45

3.5~8

5

RU

RU

25.2~54

5.5~41

1000~2600

50

2.5~5

3/2C-AH

30

M

M

39.6~86.4

12~64

1300~2700

55

4~6

5

RU

RU

36~75.6

13~39

1300~2100

60

2~4

4/3C-AH

30

M

M

86.4~198

9~52

1000~2200

71

4~6

5

RU

RU

79.2~180

5~34.5

800~1800

59

3~5

5

4/3D-AH

60

M

M

97.2~198

9~53

1000~2200

71

4~6

5

RU

RU

79.2~180

5~34.5

800~1800

59

3~5

5

6/4D-AH

60

M

M

162~360

12~56

800~1550

65

5~8

5

RU

RU

144~324

12~45

800~1350

65

3~5

5

6/4E-AH

120

M

M

162~360

12~56

800~1550

65

5~8

5

RU

RU

144~324

12~45

800~1350

65

3~5

5

8/6E-AH

120

M

M

360~828

10~61

500~1140

72

2~9

5

RU

RU

324~720

7~49

400~1000

65

5~10

5

8/6R-AH

300

M

M

360~828

10~61

500~1140

72

2~9

5

RU

RU

324~720

7~49

400~1000

65

5~10

5

10/8-AH

560

M

M

612~1368

11~61

400~850

71

4~10

5

RU

RU

540~1188

12~50

400~750

75

4~12

10/8E-M

120

M

M

666~1440

14~60

600~1100

73

4~10

5

RU

RU

540~1188

10~42

500~900

79

5~9

5

12/10-AH

560

M

M

936~1980

7~68

300~800

82

6

5

RU

RU

720~1620

7~45

300~650

80

2.5~7.5

14/12-AH

560

M

M

1260~2772

13~63

300~600

77

3~10

5

RU

RU

1152~2520

13~44

300~500

79

3~8

5

16/14-AH

560

M

M

1368~3060

11~63

250~550

79

4~10

5

16/14U-AH

1200

18/16-AH

1200

M

M

2160~5040

8~66

200~500

80

4.5~9

5

20/18-AH

1200

M

M

2520~5400

13~57

200~400

85

5~10

5

40-80% for higher density, strong abrasive slurries
40-100% for medium density, medium abrasive slurries
40-120% for lower density, lower abrasive slurries

CONTACT US
