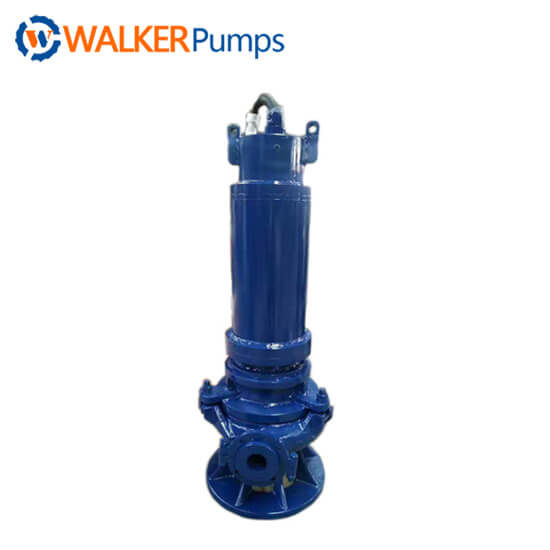

50ZJQ Submersible Slurry Pump
Capacity: 10-25m3/h
Head: 12-22m
Max. particles: 10mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
Size: 50mm
Capacity: 10-25m3/h
Head: 12-22m
Max. particles: 10mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
√ Submersible work Without influence of suction head.
√ No assistant vacuum pump, save your invest
√ No noise, keep the silence of your work station
√ With agitator, no need extra stirring devices , more convenience for operating.
√ It need not to build pump house.
√ Directly works on the surface of the slurry, with more efficiency to deliver slurry.
No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η (%) | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
1 | 50ZJQ10-20-3 | 50 | 10 | 20 | 3 | 37 | 1460 | 8 | 110 |
2 | 50ZJQ15-18-3 | 50 | 15 | 18 | 3 | 46 | 1460 | 8 | 110 |
3 | 50ZJQ20-15-3 | 50 | 20 | 15 | 3 | 52 | 1460 | 8 | 110 |
4 | 50ZJQ25-12-3 | 50 | 25 | 12 | 3 | 58 | 1460 | 8 | 110 |
5 | 50ZJQ15-22-4 | 50 | 15 | 22 | 4 | 43 | 1460 | 10 | 113 |
6 | 50ZJQ18-20-4 | 50 | 18 | 20 | 4 | 46 | 1460 | 10 | 113 |
7 | 50ZJQ20-18-4 | 50 | 20 | 18 | 4 | 50 | 1460 | 10 | 113 |
8 | 50ZJQ25-20-4 | 50 | 25 | 20 | 4 | 52 | 1460 | 10 | 113 |
50TJQ Series Submersible Slurry Pump is mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.
