Selección de bombas de dragado Walker: soluciones de dragado eficientes

Publicado en 2025/06/24

When siltation in rivers affects navigation and silt accumulation in reservoirs threatens flood storage, how can we complete the dredging task more efficiently? As the core link of water conservancy management, port construction and ecological restoration, dredging projects are not only related to the smooth flow of waterways and water ecology, but also directly affect the flood control safety and economic development of coastal cities. However, as the “heart” of the dredging system, the performance of the bomba de dragado directly determines the efficiency of silt transportation, energy consumption, and equipment life. Every operation requires a scientific equipment selection plan, from community river dredging to port expansion.

Dredge pumps can accurately control the efficiency of mud conveying, reduce energy consumption costs, and reduce disturbance to the ecology. From river management to port maintenance, from reservoir dredging to land reclamation, suitable high-efficiency equipment should be selected according to project requirements, such as conveying distance, mud concentration, working environment, etc.

What is a dredge pump?

A dredge pump is a core device used to transport mixed fluids such as mud, sand, and gravel in dredging projects.

Its working principle mainly relies on the centrifugal force generated by the high-speed rotation of the impeller. When the motor drives the impeller to rotate, the fluid in the pump casing is thrown to the outlet pipe, and at the same time, a negative pressure is formed at the inlet, and the mixture containing mud and sand is continuously sucked into the pump. This design enables the dredging pump to handle high-concentration solid-liquid two-phase flow under high-pressure conditions and adapt to a variety of operating environments such as rivers, ports, and offshore. A typical dredging pump system also includes sealing devices, wear-resistant liners, and bearing support structures to ensure long-term and stable operation of the equipment under harsh working conditions.

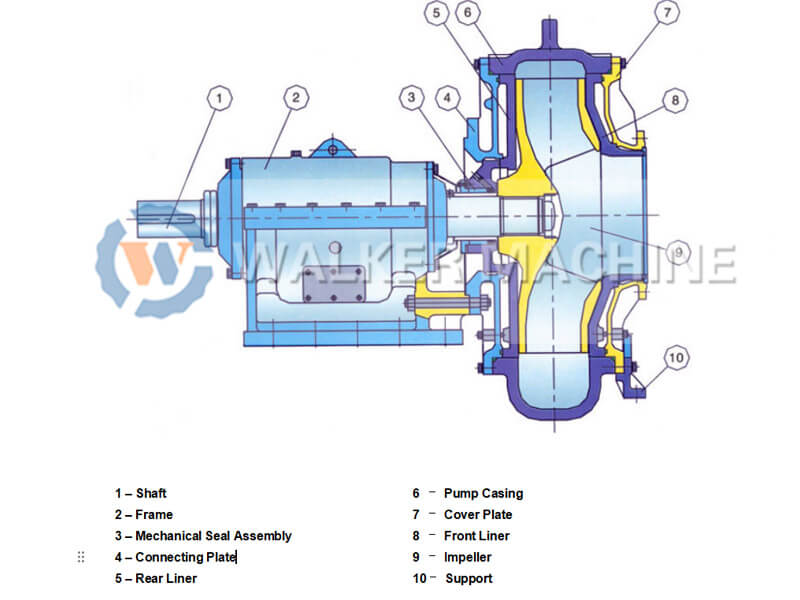

Dredge Pump Strcuture

Selection types and applications of dredge pumps

1. Centrifugal Dredge Pump

Its working principle is to generate centrifugal force through the high-speed rotating impeller, accelerate the mud, and discharge it. This pump is suitable for conveying slurries containing solid particles, such as river dredging, port dredging, mining tailings treatment, and other working conditions. With its large flow rate and simple structure, centrifugal pumps have a high cost-effectiveness in small and medium-sized dredging projects.

2. Submersible Mud and Sand Pump

The biggest feature is that it can work directly immersed in water without additional suction pipes, which is particularly suitable for deep-water dredging, sewage treatment, and port dredging. This type of bomba is usually equipped with a well-sealed motor to ensure long-term stable operation in a humid environment. Suitable for deep-water working environments, such as submarine pipeline laying or reservoir dredging.

3. Hydraulically Driven Dredge Pump

Its power comes from the hydraulic system and can adapt to stable operation under different load conditions. With its ability to cut hard soil layers with its rotating cutter head, it performs outstandingly in mining and hard soil dredging. It is especially suitable for difficult dredging tasks such as deep-sea dredging, high-viscosity mud transportation or long-distance pipeline transportation.

Walker Dredge Pump Selection-Efficient Dredging Solutions

Different types of bombas de dragado have significant differences in head, wear resistance and solid-liquid mixing ratio. In order to maximize the efficiency of dredging projects, the selection must be combined with specific project requirements.

How to choose an efficient dredge pump?

1. Engineering requirements: operating environment

In freshwater and seawater environments, the corrosion resistance requirements of pumps are different. Seawater operations require stainless steel or duplex steel to avoid rapid rust.
If river dredging is mostly shallow operations, it is necessary to take into account flexible operation in a small range and low disturbance. It is suitable to choose a small, low-lift but wear-resistant dredging pump.
If port expansion or land reclamation projects often involve large-scale sediment transportation, a large flow and high-lift pump type is required to improve efficiency.

2. Medium characteristics

If the mud with high sand content or sharp gravel is transported, high chromium alloy or ceramic-lined pump body should be given priority. In addition, if operating in narrow waters or deep waters, submersible mud pumps may be more adaptable than traditional centrifugal pumps.
If the mud contains high concentrations of sediment, the pump body needs to have a large channel design to prevent blockage.
If the conveying medium contains corrosive components, a stainless steel or epoxy resin coated pump should be selected to extend the service life.

3. Flow and head performance

River dredging usually requires a large flow and low low-head pump to ensure rapid processing of loose silt. Deep-sea dredging or long-distance mud transportation requires a high-head pump to overcome pipeline resistance and elevation differences.

4. Cost-effectiveness

The cost of a dredging pump includes not only the purchase price of the equipment, but also the operating energy consumption, maintenance frequency, and parts replacement costs. Since electricity consumption usually accounts for 30%-50% of the total cost of dredging projects, products that meet the requirements of high efficiency and energy saving are preferred.

5. Reliable after-sales service

High-quality suppliers not only provide equipment, but also provide full-process support from selection to after-sales. Check whether they provide comprehensive after-sales services, such as on-site technical support, spare parts inventory and rapid response mechanism.

Selecting a dredge pump requires comprehensive engineering requirements, medium characteristics, performance parameters, full-cycle costs, and supplier services. Each step is related to efficiency and cost. Only by accurately matching needs, weighing long-term benefits, and relying on reliable support can you choose a truly “suitable” dredging pump.

In short, the actual situation of the project site needs to be fully analyzed before selection. Engineers need to accurately calculate the flow rate and head based on the mud conveying distance, pipeline size, and terrain slope. Combined with engineering parameters, such as the total dredging volume, construction period, and other theoretical demand values, select a dredge pump type with parameter coverage and higher efficiency. An efficient pump can not only improve the project progress, but also reduce long-term operating expenses by more than 30%. Caminante proporciona varios tipos de zapatillas. Contáctenos to customize the dredging solution that best suits you!
