Construction of G Gravel pump

Main Part Number At The Drawing
003:Base 005:Bearing Assembly 132:Intake Joint, Discharge Joint
130:Discharge Flange, Intake Flange 013:Cover Plate 131:Bowl
137:Impeller 041:Back Liner 135:Door Clamp Ring
134: Adapter Plate Clamp Ring 124:Volute Cover Seal
>>>>Matel Pump Parts For Sale
GRAVEL PUMP SELECTION CHART

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

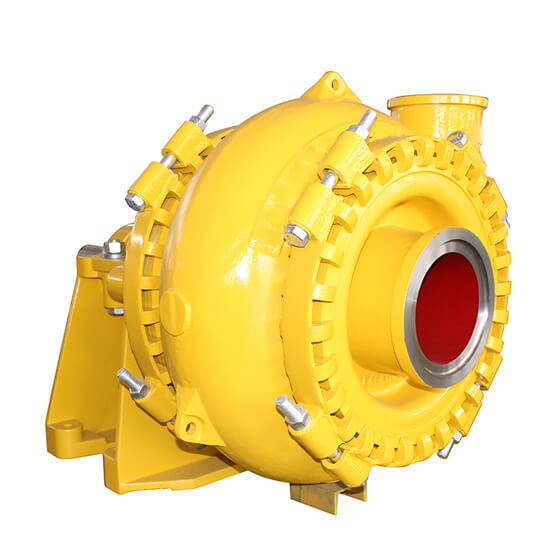

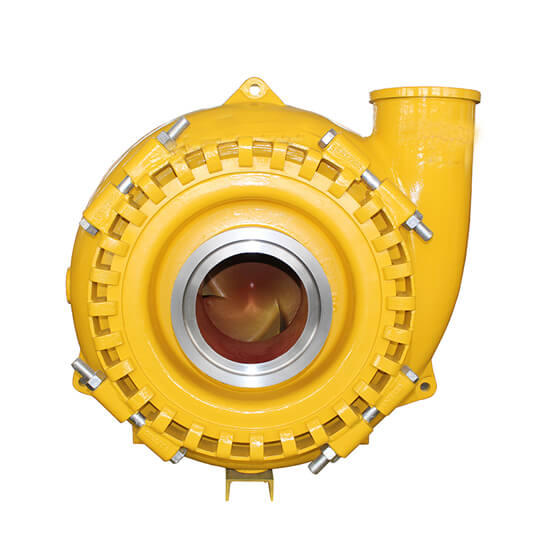

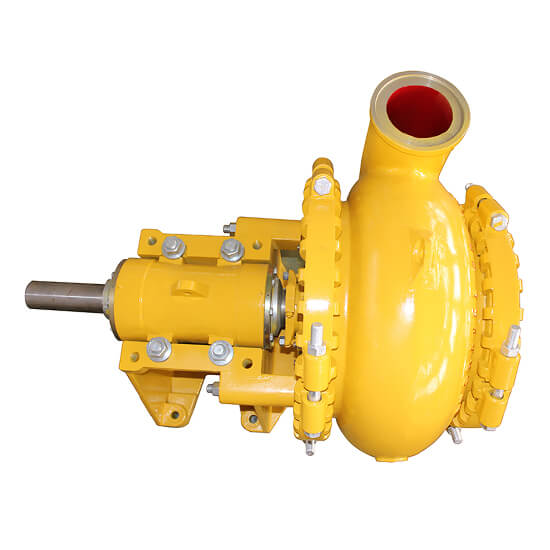

12x10G-G Gravel pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life. 12×10 Sand Gravel Pumps are used to the delivery slurry in mining, explosive sludge in metal melting, grudging in dredger and course of the river and other fields. Gravel pump for sale! What is the grave pump price? Contact us right now.
G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
