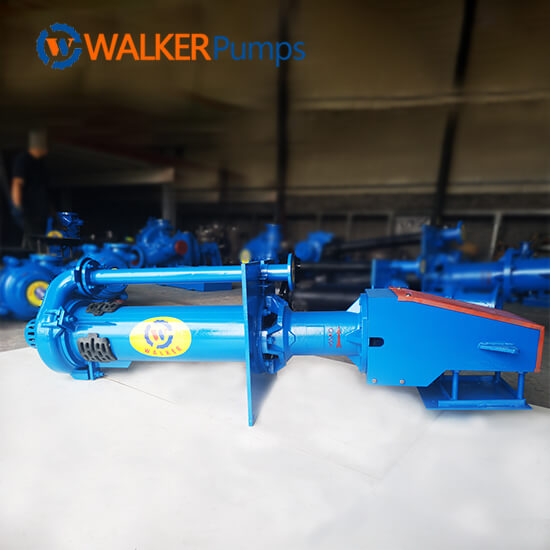

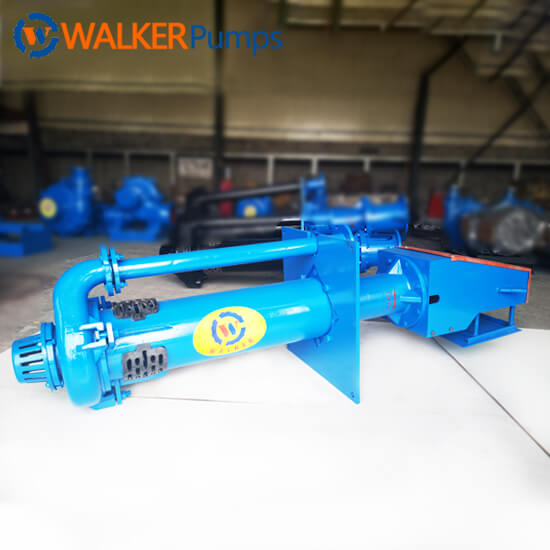

150SV-SP Vertical Slurry Pump
Capacity: 108-479.16m3/h
Head: 8.5-40m
Max.power: 110kw
Handing solids: 45mm
Speed:500-1000rpm
Submerged length:1500-3600mm
Materials:High chrome alloy, Rubber, Polyurethane etc
Construction of Vertical Sump Pump
Main Part With Numbers In The Drawing
1. Shaft 2. Dust Cover 3. Bearing 4.Bearing Gear Sleeve 5. Bearing Body 6. Bearing 7. Bracket 8. Filter Net 9. Rear Guard Plate 10. Impeller 11. Pump Body 12. Lower Filter 13. Spit Tube 14. Split Spout Flange 15. Bearing Gland
VERTICAL SUMP PUMP SELECTION CHART
Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.
Model | Matching power P (kw) | Capacity Q (m3/h) | Head H (m) | Speed n (r/min) | Eff.η (%) | Impeller dia. (mm) | Max.particles (mm) | Weight (kg) |
40PV-SP(R) | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
65QV-SP(R) | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
100RV-SP(R) | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
150SV-SP(R) | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
200SV-SP(R) | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
250SV-SP(R) | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
300SV-SP(R) | 22–200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
150SV-SP vertical end suction pump is available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in Minerals processing, Coal preparation, Chemical processing, Effluent handling, Sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation.
