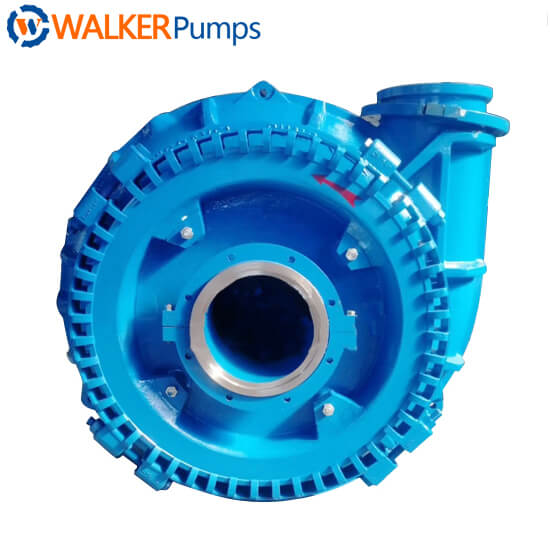

  • 16×14 G Gravel Sand Pump china

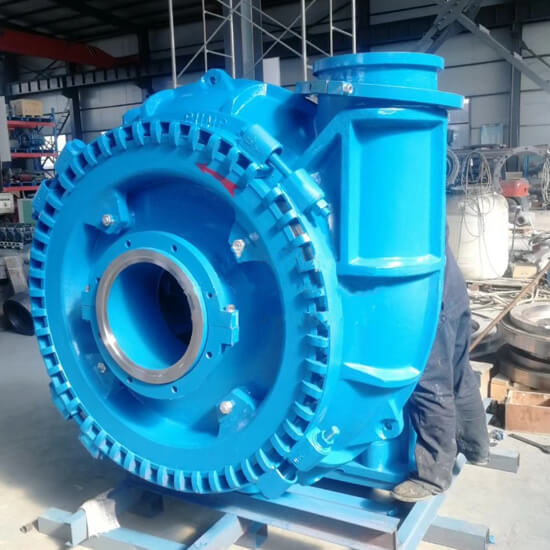

  • 16×14 G Pump

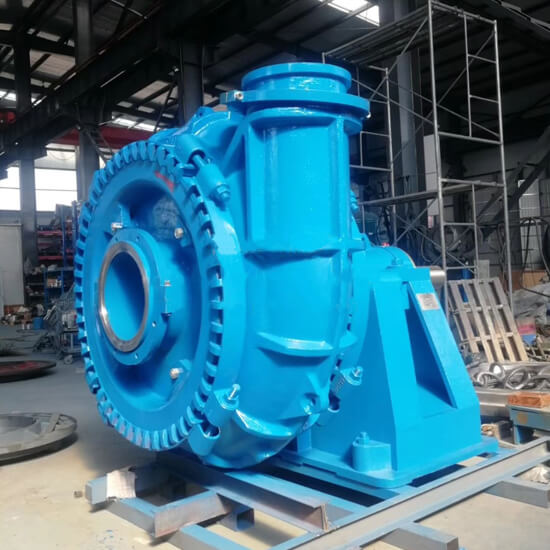

  • 16×14 G Sand Pump

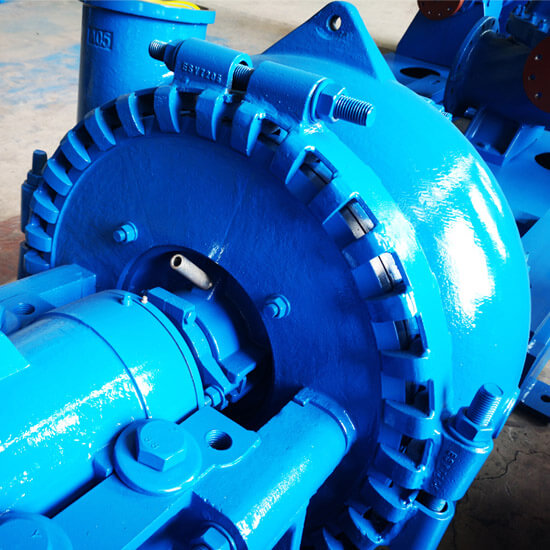

  • 16×14 G Gravel Pump

16/14 G Gravel Sand Pump

Size: 16" x 14"
Capacity: 720-3600m3/h
Head: 14-44m
Speed: 300-500rpm
NPSHr: 3-9m
Eff.: 70%
Power: Max.1200kw
Handling solids: 230mm
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc

Construction of G Gravel pump
gravel pump construction
Main Part Number At The Drawing

003:Base 005:Bearing Assembly 132:Intake Joint, Discharge Joint
130:Discharge Flange, Intake Flange 013:Cover Plate 131:Bowl
137:Impeller 041:Back Liner 135:Door Clamp Ring
134: Adapter Plate Clamp Ring 124:Volute Cover Seal

>>>>Matel Pump Parts For Sale

GRAVEL PUMP SELECTION CHART

16/14 G Gravel Sand Pump

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

16x14TU-G Gravel Pump is horizontal single-casing slurry pumps with wide passage to transfer sand or slurry with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure a long service life. 16×14 gravel pumps have far better performance than common pumps in dredging, sand mining, barge loading and mineral processing, etc. Chinese warman gravel pump for sale.

Model

Max. Power P

(kw)

Capacity Q

(m3/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

NPSH

(m)

Impeller Dia.

(mm)

6/4D-G

60

36-250

5-52

600-1400

58

2-5.5

378

6/4E-G

120

36-250

5-52

600-1400

58

2-5.5

378

8/6E-G

120

126-576

6-45

800-1400

60

3-4.5

391

10/8S-G

560

216-936

8-52

500-1000

65

3-7.5

533

10/8S-GH

560

180-1440

24-80

500-950

72

2.5-5

711

10/8F-G

260

216-936

8-52

400-800

65

3-7.5

533

12/10F-G

260

360-1440

10-60

350-700

65

1.5-4.5

667

12/10G-G

600

360-1440

10-60

400-850

65

1.5-4.5

667

12/10G-GH

600

288-2808

16-80

350-700

73

2-10

950

14/12G-G

600

576-3024

8-70

300-700

68

2-8

864

14/12T-G

1200

576-3024

8-70

300-700

68

2-8

864

16/14G-G

600

720-3600

18-45

300-500

70

3-9

1016

16/14T-G

1200

720-3600

18-45

300-500

70

3-9

1016

16/14TU-GH

1200

324-3600

26-70

300-500

72

3-6

1270

18/16TU-G

1200

720-4320

12-48

250-500

72

3-6

1067

G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries. discuss detailed about quality guarantee Chinese warman pumps.
