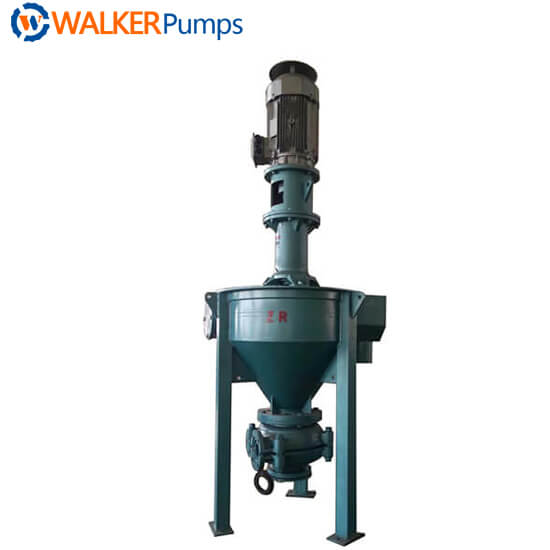

3QV-AF Vertical Froth Pump

Inlet: 6 inch
Outlet: 3 inch
Capacity: 23-77.4m3/h
Head: 5-28m
Max.power: 18.5kw
Materials: High chrome alloy, Rubber, Polyurethane etc.

Construction of AF Forth Slurry Pump

af froth slurry pupmp

Main Part Number At The Drawing

1. Bearing 2. Bearing Assembly 3. Tank 4. Frame Plate 5. Cover Plate

>>>>Matel Pump Parts For Sale

AF FROTH SLURRY PUMP SELECTION CHART

3QV-AF Vertical Froth Pump

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

√ Submerged in liquid, delivering abrasive & corrosive slurry which contains froth.
√ Double casing structure
√ No shaft seal and flushing water
√ The parts immersed in liquid can be wear resistant metal or rubber
√ Easy to maintain

Model

Inlet

(mm)

Outlet

(mm)

Matching Power P

(kw)

Capacity Q

(m³/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

Impeller dia.

(mm)

2QV-AF

100

50

3-15

6-43

6-30

800-1800

45

229

3QV-AF

150

75

3-18.5

23-78

5-28

700-1500

55

268

4RV-AF

150

100

5.5-37

33-187

5-28

500-1050

55

397

6SV-AF

200

150

15-75

80-393

5-25

250-680

55

560

8SV-AF

250

200

37-110

126-575

5-26

350-650

55

3QV-AF Vertical Froth Pump is designed to increase the pumping ability of frothy slurries. The principle of operation is similar to that of hydrocyclone separation. Air is separated from the slurry in a vortex created by the impeller rotation and the tangential inlet to the pump’s conical sump. This results in more efficient pumping at higher capacities and smooth operation. It is an ideal product for the transporting of slurries with lots of froth, especially the slurries in the minerals flotation processing. vertical froth pump for sale, discuss with our engineer in detailed.
