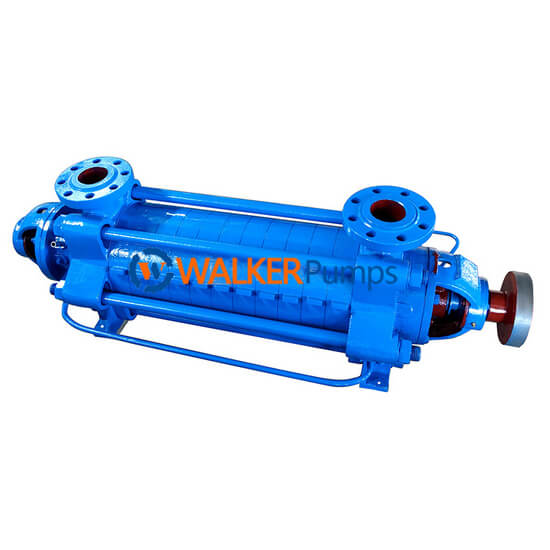

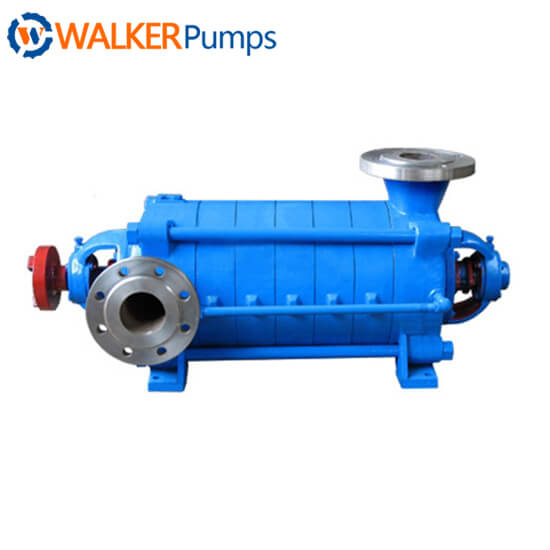

DF Multistage Water Pump

Capacity: 3.7 ~ 1350m³/h
Head: 49 ~ 1800m
Efficiency: 32% ~ 84%
Weight: 78 ~ 3750kg
Motor Power: 3 ~ 1120kw
NPSH: 2.0 ~ 7.0m
Material: Cast Iron/Stainless Steel/Ductile Iron

DF multi-stage centrifugal pump model description】

>>>DF25-50×5<<<

“DF” —- Corrosion-resistant multistage pump

“25” —- Flow 85 m3/h

“50” —- Head 50 m per stage

“5” — Number of impeller

>>>50 DF 8 x 3<<<

50 — Inlet diameter 50 mm

DF —- Corrosion-resistant multistage pump

8 —-  Head 8 m per stage

3 —- Number of impeller

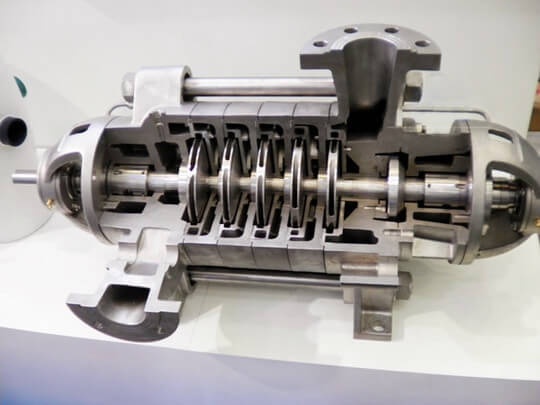

Construction of DF type multistage centrifugal pump
multistage centrifugal pump structure

>>>>Matel Pump Parts For Sale



DF corrosion-resistant multistage pump is the single-priming, multistage, segmental corrosion-resistant centrifugal one for conveying corrosion-resistant liquid without solid particles. The transmitted medium temperature should be between -20 degrees centigrade to 105 degrees centigrade, the allowed inlet pressure be 0.6 MPa.

Type
Flow(m3/h)
Head(m)
Speed(r/min)
Motor Power(kw)
D6-50×2
6.3
100
2950
11
D6-50×12
6.3
600
2950
55
D25-50×3
25
150
2950
30
D25-50×12
25
600
2950
110
D46-50×12
46
600
2950
160
D85-67×9
85
603
2950
250
D120-50×2
120
100
2950
55
D120-50×9
120
450
2950
220
D155-67×9
155
603
2950
450
D360-40X10
360
400
1480
630
D580-70X10
580
700
1480
1800
D720-60×9
720
540
1480
1600

DF corrosion-resistant multistage pump is for conveying corrosive liquid without solid particle material. Liquid temperature is -20℃ to 105℃. The allowable pressure of the pump inlet should be less than 0.6MPa. Customers can select reasonable material, seal method, structure and motor of pump according to their conveyed medium, consistence, proportion, temperature and pump inlet pressure, etc.
