  • 2Q-AF Vertical Froth Pump walker

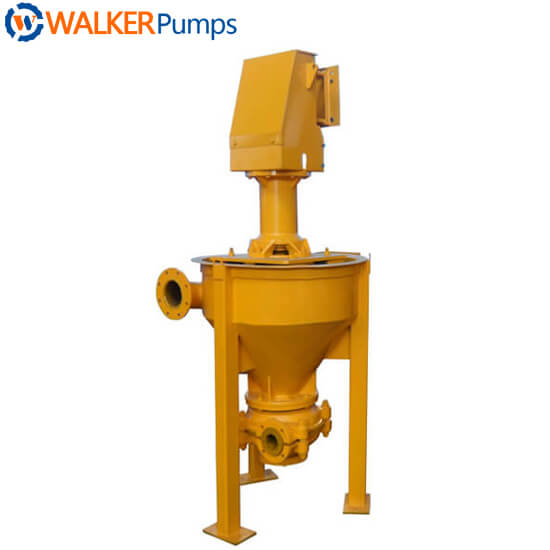

2Q-AF Vertical Froth Pump

Inlet: 4 inch
Outlet: 2 inch
Capacity: 7.6-42.8m3/h
Head: 6-29.5m
Max.power: 15kw
Materials: High chrome alloy, Rubber, Polyurethane etc.

Construction of AF Forth Slurry Pump

af froth slurry pupmp

Main Part Number At The Drawing

1. Bearing 2. Bearing Assembly 3. Tank 4. Frame Plate 5. Cover Plate

>>>>Matel Pump Parts For Sale

AF FROTH SLURRY PUMP SELECTION CHART

2Q-AF Vertical Froth Pump

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

√ Excellent performance, easy assembly & disassembly, high reliability and etc.
√ Without shaft seal and sealing water.
√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to √ Any eight positions to suit installations and applications.
√ Drive type: It can be used in direct drive or indirect drive, and the belt pulley can be replaced √ Easily,used to change the pump speed and meet the variations of working conditions.
√ The transmission parts are in commonly used with SP(R) type vertical sump pump.

Model

Inlet

(mm)

Outlet

(mm)

Matching Power P

(kw)

Capacity Q

(m³/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

Impeller dia.

(mm)

2QV-AF

100

50

3-15

6-43

6-30

800-1800

45

229

3QV-AF

150

75

3-18.5

23-78

5-28

700-1500

55

268

4RV-AF

150

100

5.5-37

33-187

5-28

500-1050

55

397

6SV-AF

200

150

15-75

80-393

5-25

250-680

55

560

8SV-AF

250

200

37-110

126-575

5-26

350-650

55

2QV-AF Froth Slurry Pump is vertical, double casing, single-stage centrifugal forth pump, manufactured with advanced technology. The 2QV-AF froth pump can effectively eliminate the bubble in the slurry at work, even the slurry capacity is not enough the pump can work normally. It is suitable for various of flotation process and a perfect pump for handing frothy pulp indeed. AF vertical forth pump’s capacity is much higher than that of other types of slurry pump without a shaft seal and sealing water. Walker, Chinese vertical froth pump manufacturer, your trusted friend.
