  • walker Slurry Pump Volute Liners

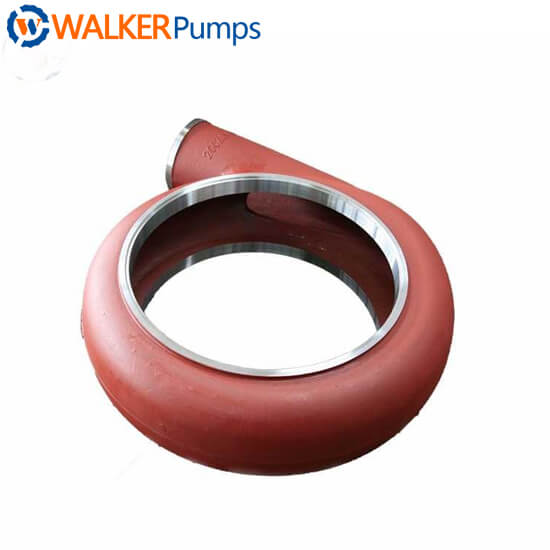

Slurry Pump Volute Liners

Pump model: AH, HH, L, M, SP, G/GH, AF
Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Pump model: AH, HH, L, M, SP, G/GH, AF
Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Volute Liner Code

AH Slurry Pump

Volute Liner Materials

B1110

1.5/1B-AH

High chrome, Natural rubber, Polyurethane

B15110

2/1.5B-AH

High chrome, Natural rubber, Polyurethane

C2110

3/2C-AH

High chrome, Natural rubber, Polyurethane

D3110

4/3C-AH, 4/3D-AH

High chrome, Natural rubber, Polyurethane

E4110

6/4D-AH, 6/4E-AH

High chrome, Natural rubber, Polyurethane

F6110

8/6E-AH, 8/6F-AH

High chrome, Natural rubber, Polyurethane

G8110

10/8F-AH, 10/8T-AH

High chrome, Natural rubber, Polyurethane

G10110

12/10F-AH, 12/10T-AH

High chrome, Natural rubber

G12110

14/12F-AH, 14/12T-AH

High chrome, Natural rubber

H14110

16/14TU-AH

High chrome, Natural rubber

Volute Liner Code

HH Slurry Pump

Volute Liner Materials

CH1110

1.5/1C-HH

High chrome

DH2110

3/2D-HH

High chrome

EH3110

4/3E-HH

High chrome

FH4110

6/4F-HH

High chrome

FH4110

6-H

High chrome

Volute Liner Code

M Slurry Pump

Volute Liner Materials

F8110

10/8E-M, 10/8F-M,10/8R-M

High chrome, Natural rubber, Polyurethane

F10110

12/10E-M, 12/10F-M

High chrome, Natural rubber, Polyurethane

Volute Liner Code

L Slurry Pump

Volute Liner Materials

AL2110

20A-L

High chrome, Natural rubber

BL5110

50B-L

High chrome, Natural rubber

CL75110

75C-L

High chrome, Natural rubber

DL10110

100D-L

High chrome, Natural rubber

EL15110

150E-L

High chrome, Natural rubber

SL20110

200E-L

High chrome, Natural rubber

SL30110

300S-L

High chrome, Natural rubber

SL35110

350S-L

High chrome, Natural rubber

TL40110

400ST-L

High chrome, Natural rubber

TL45110

450ST-L

High chrome, Natural rubber

UL55110

550TU-L

High chrome, Natural rubber



Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.
